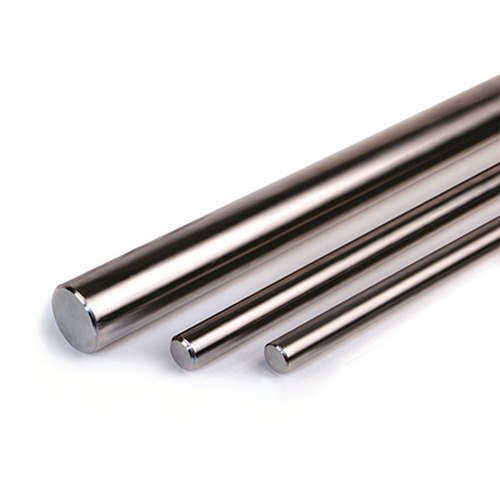

Stainless Steel (SS) 430F Bright & Round Bar

Stainless Steel (SS) 430F Bright & Round Bar

We are one of the leading manufacturers of SS 430 F bright bars and smooth turned round-bars based in Mumbai and supplying to our clients all over India as well as internationally. Parth Steel & Engg Co. is a highly reputed manufacturer, supplier and exporter of variety of stainless steel materials especially the Stainless steel (SS) 430 F Bright and Round Bars. We offer wide ranges of these materials to our clients so their demands are met well. The bars that we are providing to the industries are varying in specifications like dimensions, standards, sizes, length, diameter, surface finishes, and forms.

Our Stainless Steel manufacturing plant has integrated in house facility for heat treatment, (annealing, solution annealing, hardening and tempering), pickling, straightening, peeling, drawing, centreless grinding, polishing and buffing.

This material is same as 430 stainless steel but with increased sulfur content so that it’s machinability is improved. It still has moderate ductility though this alloy does not form easily because of sulfur content. It’s a free machining version of grade SS 430. It is non- heat treatable, has moderate strength and is also corrosion resistance.

The following are the major applications of grade 430F stainless steel- aircraft parts, Fasteners, solenoids, Gears, Shafts, and Pinions.

Size range 5 mm to 100 mm (3/16 inch – 4 inch)
Size Tolerances h9, h10, h11, k12, k13, A-484, EN-10060, DIN-1013 etc.
Length 2 metres to 6 metres
Chamfering Available in 30° to 60° through fully automatic both-end chamfering machine
Crack Test Magnetic Particle Inspection (MPI)
Ultrasonic Test 100% tested through Digital Ultrasonic Flaw Detector, as per ASTM A-388, EN 10308 (class 1 to 4), API 6A/ISO 10423:2003-PSL 3, SEP 1920:1984 (class A, B, C), MIL STD 2154
Length Tolerance Available in special cut to length bars in tolerance -0/+10 mm (-0/+0.5 inch)
Straightness Up to 0.25 mm/metre TIR (0.0015 inch/feet)
Surface Finish Centreless Ground & Belt Polished up to Ra value 0.2 microns (12 RMS) and 24 – 320 Grit Polished
Heat Treatment Annealed, Solution Annealed, Quenched & Tempered (QT), Double Ageing/Double Tempering

Some of the important characteristics of our Bright Bars include:

  • Corrosion Resistant
  • High Tensile Strength even at higher temperatures
  • 100% purity levels
  • Develop stainless steel under precise monitoring and supervision in the electric melting furnaces
  • Detailed inspection at multiple production stages to feature end-user applications
  • The thorough assessment of all input materials to ensure desired specifications as desired by the customer
  • Controlled Shaping, Systematic melting, and & Heat Treatments
  • Monitored metallurgical operations
  • IM (Improved Machining) grades to ensure stainless steel hardness with high corrosion qualities
  • 100% Inspection through Digital Ultrasonic Flaw Detector to determine internal defects
  • Leverage ultra-modern technological innovations to manufacture the most updated range of Bright Round Bars
  • State of the art mechanical laboratory with Bar Hot Rolling Mill using 6 and 4 stand to incorporate innovatively
  • geometric designs of the Bright Round Bars stainless steel
  • Statistical monitoring of results to facilitate systematic elimination of deviations, if any.

The major factors that validate the outstanding properties of our bright bars are:

  • It’s chemical composition & Mechanical Properties
  • Latest Technology used in our Managed Metallurgical Operations
  • Free from any internal defects
